Horizontal Planetary Ball Mill

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. A variety of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.

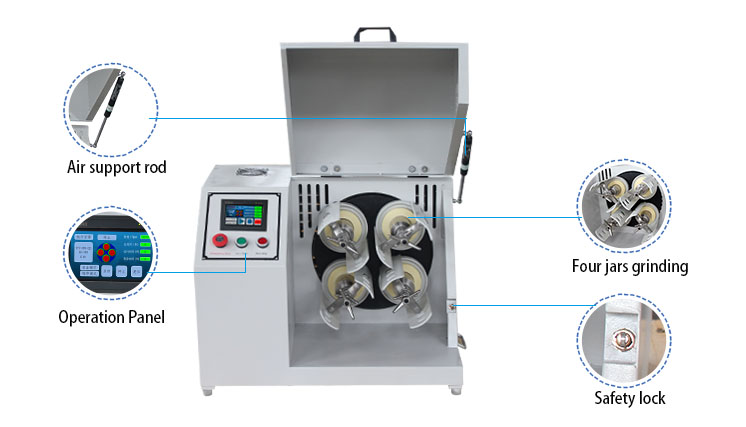

Features
1. Easy operation.
2. Unique gear with low noise.
3. Horizontal structure of the mill pot avoids materials sinking to the bottom.

Advantages of Laboratory Horizontal Planetary Ball Mill
1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter; you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, and timing according to experimental needs so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

Application Cases of Planetary Ball Mill

Application Cases of Planetary Ball Mill

Technical Features of Horizontal Planetary Ball Mill
Drive Mode	Gear drive and belt drive
Operation Mode	Two or four mill jars can be used for each grinding
Maximum Loading Capacity	Less than 1/3 of each jar volume Total max capacity: less than 1/3 of total jars volume
Feeding Size	Soil material≤10mm, other materials≤3mm
Output Granularity	Smallest granule reaches to 0.1 μm
Rotational Speed Ratio	1/2
Max. Continuous Operating Time	72hours
Optional Modes of Speed Control	Frequency conveter and automatic timing control
Materials of Jar	304 Stainless steel, 316l stainless steel, Zirconia, Nylon, PU, Alumina ceramic (corundum), PTFE, Agate, Tungsten carbide

Table 1 Technical Parameters For Laboratory Horizontal Planetary Ball Mill

Model No.	Specifications	Matchable Sizes of Mill Jars	Matched Quantity	Matchable Sizes of Vacuum Mill Jars
WXQM-0.4	0.4L	50ml, 100ml	4 pcs	50ml
WXQM-1	1.0L	50ml, 100ml, 250ml	4 pcs	50ml. 100ml
WXQM-2	2.0L	50ml-500ml	4 pcs	50ml, 100ml, 250ml
WXQM-4	4.0L	250ml-1000ml	4 pcs	50ml-500ml
WXQM-6	6.0L	1L-1.5L	4 pcs	50ml-750ml

Table 2 Technical Parameters For Laboratory Horizontal Planetary Ball Mill

Model No.	Voltage	Power	Rotation Speed	Noise
WXQM-0.4	220V-50Hz	0.75KW	70-670 rpm	Less than 58db
WXQM-1	220V-50Hz	0.75KW	70-670 rpm	Less than 60db
WXQM-2	220V-50Hz	0.75KW	70-670 rpm	Less than 60db
WXQM-4	220V-50Hz	0.75KW	70-670 rpm	Less than 60db
WXQM-6	220V-50Hz	0.75KW	70-670 rpm	Less than 60db

Table 3 Technical Parameters For Laboratory Horizontal Planetary Ball Mill

Model No.	Speed Control	Net Weight	Net Dimensions
WXQM-0.4	Frequency Control	86kgs	700510570mm
WXQM-1	Frequency Control	86kgs	700510570mm
WXQM-2	Frequency Control	86kgs	700510570mm
WXQM-4	Frequency Control	86kgs	700510570mm
WXQM-6	Frequency Control	86kgs	700510570mm

Matching Solutions Recommendation for Materials & Mill BallsMatching Solutions Recommendation for Materials & Mill Ballsommendation for Materials & Mill JarsMatching Solutions Recommendation for Materials & Mill Jars; SpecificationsAvailable Mill Jars & Specificationsleft;">Besides the planetary ball mill machine, our factory provides all kinds of mill pots，like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

Available Mill Jars & Specifications

Description of Mill Jars	Available Specifications
304 Stainless steel mill jar	From 50ml to 25L
Alumina ceramic (Corundum) mill jar	From 50ml to 10L
Zirconium mill jar	From 50ml to 5L
Nylon mill jar	From 50ml to 25L
Polyurethane mill jar	From 50ml to 1L
PTFE/Teflon mill jar	From 50ml to 10L
Agate mill jar	From 50ml to 2L
Tungsten carbide mill jar	From 50ml to 2L
316l Stainless steel mill jar	Customized
304 Stainless steel vacuum mill jar	Customized

Matching Solutions Recommendation for Materials & Mill Jars

Materials & Requests	Recommended Solutions
Soil materials and other materials which are not allowed with any impurity contamination	Agate mill jar
Metal or nonmetal which are not allowed with any impurity contamination	Zirconium mill jar
High hardness materials like diamond, tungsten carbide	Tungsten carbide mill jar
Strong add & alkali materials, or other materials under high temperature	PTFE mill jar
Iron ore materials or other materials with low impurity sensitivity	304 stainless steel mill jar
Pigment or materials with later processing under high temperature	Nylon mill jar
Aluminum materials like ceramic glaze	Corundum mill jar
Electronic materials like lithium battery	Polyurethane mill jar
Easily oxidized materials or some materials which need to be protected under special atmosphere	Vacuum mill jar

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.

Available Mill Balls & Specifications

Descriptions	Available Specifications (Diameter Size)
304 Stainless steel mill balls	From 1mm to 30mm
316l Stainless steel mill balls	From 1mm to 30mm
Alumina mill balls	From 1mm-50mm
Zirconium mill balls	From 0.1mm to 30mm
Agate mill balls	From 1mm-30mm
Tungsten carbide mill balls	From 2mm to 20mm
Carbon steel mill balls	From 1mm to 30mm
Iron core PU mill balls	From 15mm-30mm

Matching Solutions Recommendation for Materials & Mill Balls

Grinding Balls	Hardness ( Mohs )	Characteristics
Tungsten Carbide Balls	≥9.0	Super wear-resistance, no impurity, anti-corrosion, High temperature resistance
Zirconia Balls	≥9.0	Super wear-resistance, no impurity, anti-corrosion, High temperature resistance, commonly used for medicine, food and other materials which can not be allowed with impurity.
Stainless Steel Balls	≥6.0	Wear-resistance, anti-corrosion, high temperature resistance, brings some impurity.
Agate Balls	≥7.0	Super wear-resistance, commonly used for medicine, food and other materials which can not be allowed with impurity, anti-corrosion, high temperature resistance
Alumina Balls	≥8.5	Wear-resistance, anti-corrosion, high temperature resistance, brings impurity

Pictures of Accessories & Spare Parts
