Agate Mill Ball

  • Brand:TENCAN
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

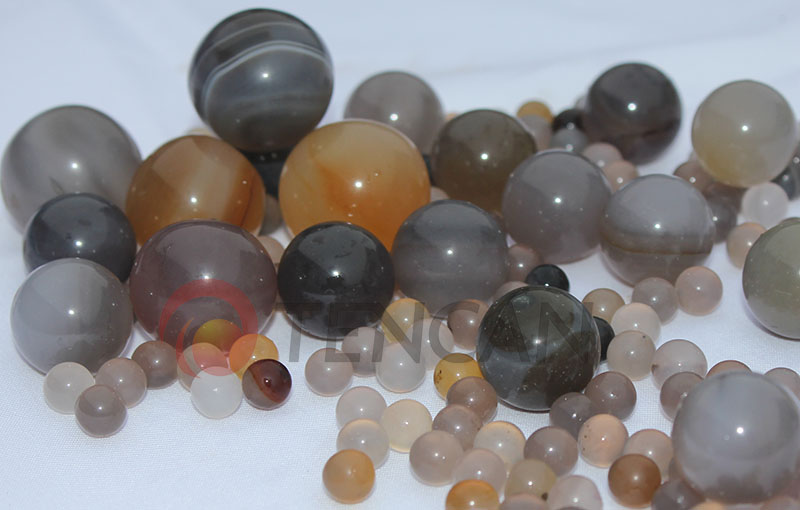

Tencan Agate ball is made of natural agate with high hardness and high toughness as well as good abrasion resistance. It can be used and matched with all kinds of ball mills. Agate ball has a long life and reduces using cost and friction abrasion. Further, it has less effect to the environment.

1) High density, high hardness, high grinding efficiency, and rapid grinding.
2) Smooth and polishing surface, small diameter: It is suitable for grinding and dispersing precise and ultra-fine powder.
3) Because of its high purity, it can prevent from being mixed into grinding powder.
4) Good abrasion resistance and durability: Production cost can be reduced.
5) It plays a great role in wet grinding and dispersing sticky and heavy materials.
6) No need to worry about erosion problem of balls when applied to stirred ball mills.
Parameters of Agate Mill Balls
Components 94%SiO2, 6%MgO/ CaO/ Mn2O3
Moh's Hardness 7.2
Elasticity Modulus >70 Gpa
Size(mm) Φ3, 5, 8, 10, 12, 15, 20mm.(Customized size is acceptable.)
Mill Pots

We provide all kinds of mill pots in any matched size, which can be made of agate, alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.

Mill pots for planetary ball mills

Mill pots for roll ball mills
