Nylon Mill Jar for Roll Ball Mill

  • Brand:TENCAN
  • Applications:It is widely used in the fields of precious metals, electronic ceramics, magnetic materials, pigment, paint etc.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

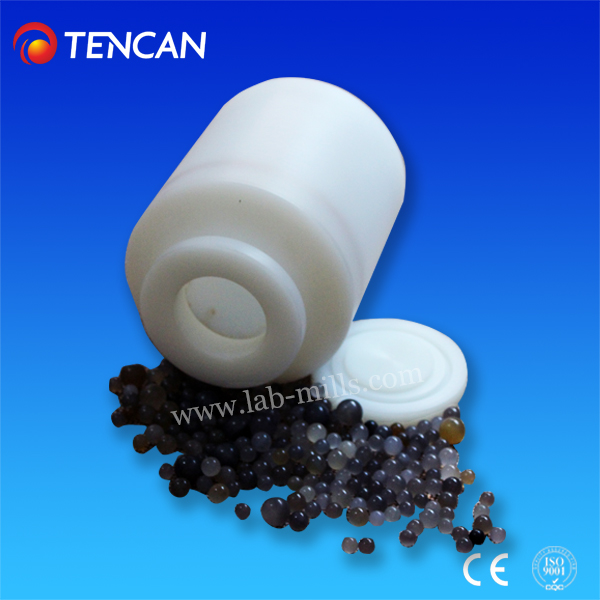

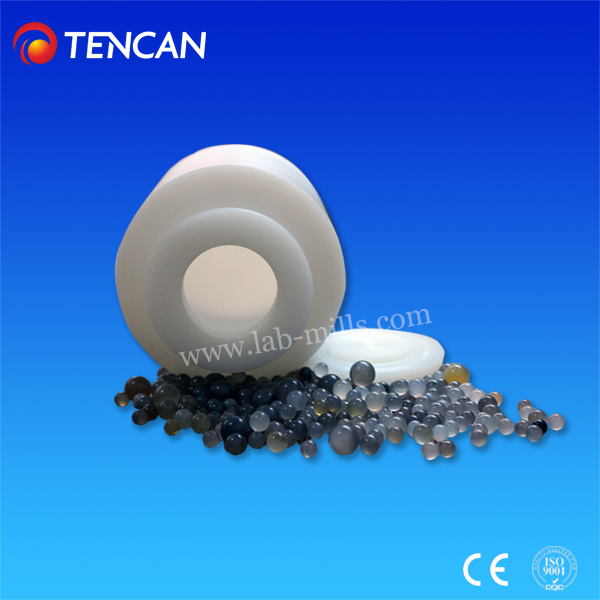

 Nylon roll mill jar is a kind of superior grinding jar which does not contain any metal impurities. It is the best option for milling all kind of metal and high level pigment. Nylon mill jar is widely applied in lots of industries such as noble metal, electrical ceramic , magnetic material, pigment coating, and etc.


Parameters  Of Nylon Roll Mill Jar
Specification Outer Diameter(mm) Inner Diameter(mm) Height(mm)
500ml 108 88 115
1L 133 109 142
1.5L 133 109 178
2L 158 134 172
2.5L 158 134 202
3L 158 138 210
4L 178 138 226

1.Pure white color, elegant apperance;

2.Non-metal material, no impurity in process of grinding.

3.Professional design, good workmanship and beautiful outlook.

4.High strength, good tenacity, and good tightness.


 Mill Balls

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
